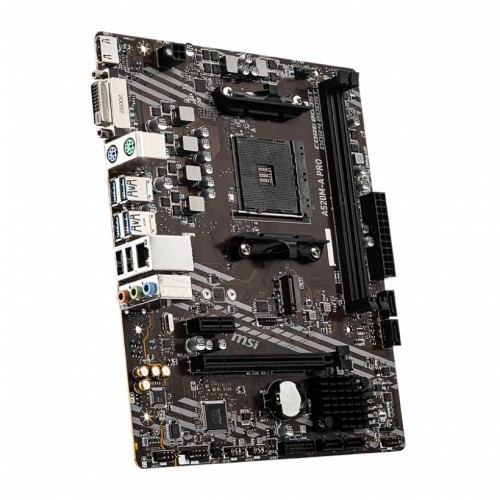

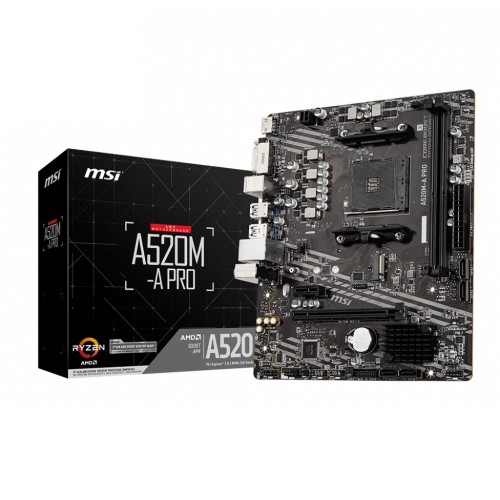

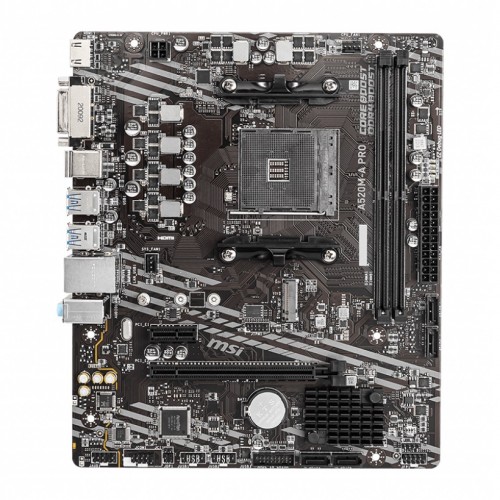

MSI A520M-A Pro AM4 AMD Micro-ATX Motherboard
Original price was: 8,270৳ .7,300৳ Current price is: 7,300৳ .
Key Features
- Model: MSI A520M-A Pro
- AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors
- PCB with 2OZ Thickened Copper
- Supports up to 4600(OC) MHz RAM
- Core Boost, Turbo M.2 & Audio Boost
Specification
| Basic Information | ||
| Supported CPU | AMD Ryzen 5000/4000G Series & AMD Ryzen 3rd Generation Processors | |
| Chipset | AMD B520 | |
| Form Factor | Micro-ATX Form Factor 9.3 in. x 7.9 in. (23.6 cm x 20 cm) |
|
| Expansion Slots | ||
| PCI | 1x PCIe 3.0 x1 slot 1x PCIe x16 slot |
|
| M.2 Socket | 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Memory | ||
| Type | Dual-channel memory architecture | |
| Slots | 2x DDR4 memory slots | |
| Supported Memory | Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE 1DPC 1R max speed 4600 MHz 1DPC 2R max speed 3866 MHz Supports non-ECC UDIMM memory Supports ECC UDIMM memory (non-ECC mode) Supports un-buffered memory |
|
| Maximum Memory | 64GB | |
| Graphics | ||
| Graphics | 1x HDMI 2.1 port, supports a maximum resolution of 4096×2160 @60Hz 1x DVI-D port, supports a maximum resolution of 1920×1200@60Hz |
|
| Max Shared Memory | 16GB | |
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 port, maximum resolution of 4096×2160 @60Hz | |
| DVI-D (s) | 1x DVI-D port, maximum resolution of 1920×1200@60Hz | |
| USB (s) | AMD A520 Chipset 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors) AMD Processor 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel |
|
| LAN Port (s) | 1x Realtek RTL8111H Gigabit LAN controller | |
| Supported Storage | AMD A520 Chipset 4x SATA 6Gb/s ports 1x M.2 slot (Key M) (from AMD Processor) Supports PCIe 3.0 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices |
|
| Audio | Realtek ALC892 Codec 7.1-Channel High Definition Audio |
|
| Internal I/O Ports | 1x 24-pin ATX main power connector 1x 4-pin ATX 12V power connector 4x SATA 6Gb/s connectors 1x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper |
|
| TPM (Trusted Platform Module ) | 1xTPM module connector | |
| Others | ||
| Special Features | RAID: Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Warranty Information | ||
| Manufacturing Warranty | 03 Years Warranty | |
