SPECIFICATION
MOTHERBOARD | |
Supported CPU | AMD AM4 Socket 3rd and 2nd Gen AMD Ryzen/3rd, 2nd, and 1st Gen AMD Ryzen with Radeon Graphics Processors |
Memory | 4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory Dual Channel Memory Architecture |
Graphics | Integrated Graphics in the 3rd, 2nd, and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors Multi-VGA output support : HDMI/DisplayPort ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz – Supports DisplayPort 1.2 with max. resolution 4096 x 2160 @ 60 Hz |
Slots | 3rd Gen AMD Ryzen™ Processors 1 x PCIe 4.0 x16 (x16 mode) 2nd Gen AMD Ryzen™ and 3rd Gen AMD Ryzen™ with Radeon™ Graphics Processors 1 x PCIe 3.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD X570 chipset 1 x PCIe 4.0 x16 (max at x4 mode) 2 x PCIe 4.0 x1 |
Supported Storage | 3rd Gen AMD Ryzen™ Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 2nd Gen AMD Ryzen™/3rd, 2nd and 1st Gen AMD Ryzen™ with Radeon™ Graphics Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support AMD X570 chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCI-E 4.0 x4 and SATA modes) storage devices support 8 x SATA 6Gb/s port(s) Support Raid 0, 1, 10 |
LAN | Intel® I225-V 2.5Gb Ethernet ASUS Turbo LAN Utility TUF LANGuard |
Audio | Realtek® ALC S1200A 8-Channel High Definition Audio CODEC Audio Feature: – Exclusive DTS Custom for GAMING Headsets. – Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference – Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals – Premium Japanese audio capacitors: Provide warm, natural, and immersive sound with exceptional clarity and fidelity – Audio Cover: Effective shielding preserves the integrity of audio signals to ensure the best quality. |
USB Port | Rear USB Port ( Total 7 ) 3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x Type-C) 4 x USB 3.2 Gen 1 port(s)(4 x Type-A) Front USB Port ( Total 7 ) 1 x USB 3.2 Gen 2 front panel connector port(s)(1 x Type-C) 2 x USB 3.1 Gen 1 port(s)(2 x Type-A) 4 x USB 2.0 port(s)(4 x Type-A) |
Internal I/O Ports | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 2 x Aura RGB Strip Header(s) 1 x Addressable Gen 2 header(s) 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode) 1 x SPI TPM header 8 x SATA 6Gb/s connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x COM port header 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports |
External I/O Ports | x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 1 x Optical S/PDIF out 5 x Audio jack(s) 1 x BIOS FlashBack™ Button(s) 1 x ASUS Wi-Fi Module 4 x USB 3.2 Gen 1 (up to 5Gbps) ports 3 x USB 3.2 Gen 2 (up to 10Gbps) ports (Type-A + USB Type-CTM) |
WiFi | Intel® Wi-Fi 6 AX200 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports PCIe interface |
Form Factor | ATX Form Factor |
BIOS | 256Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.2, ACPI 6.2, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, F4 AURA ON/OFF, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
Warranty | 03 Years |
DESCRIPTION

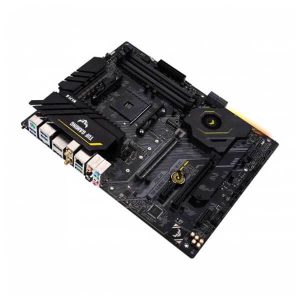

ASUS TUF GAMING X570-PRO Motherboard in Bangladesh
Bring wired connections and Wi-Fi 6 to your next build with the TUF Gaming X570-PRO Wi-Fi AM4 ATX Motherboard from ASUS. Designed to be used with Ryzen 2nd and 3rd Gen processors, this motherboard features the AMD X570 chipset and AM4 socket. Install up to 128GB of dual-channel DDR4 RAM across four slots, with accelerates to 5100 MHz supported when overclocking. Eight SATA III and two M.2 connectors provide interfaces for storage drives, while two PCIe 4.0 x16 and two x1 slots accommodate graphics cards and other adapter cards, and support AMD 2-Way CrossFireX.

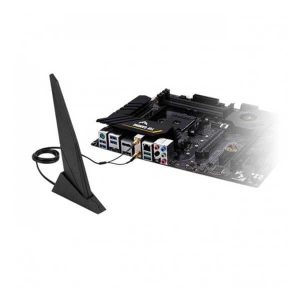

A rear I/O panel sports a USB 3.2 Gen 2 Type-C port and two Type-A ports, also as four Gen 1 Type-A ports. Connect a legacy mouse or keyboard via the PS/2 combo port. Output to a display via DisplayPort or HDMI. An RJ45 port supported wired 2.5 Gigabit Ethernet, while two Wi-Fi antenna connectors are often used with the supplied antenna. ASUS TUF GAMING X570-PRO Motherboard rear panel also sports five 3.5mm audio jacks and a S/PDIF port. A BIOS Flashback button is additionally present on the rear panel.
ASUS TUF GAMING X570-PRO Motherboard Internal headers support three chassis fans, three RGB connections, 8- and 4-pin power connections, a TPM, and a transparent CMOS. Front-panel USB and Audio connections also are supported, including a USB 3.2 Gen 2 Type-C connection. Audio on this motherboard is handled by the Realtek ALC S1200A codec, supporting 8-channel audio. additionally, to Wi-Fi 6, this motherboard also supports Bluetooth 5.1 connectivity after updating Windows 10 to create 19041 or later. The ASUS TUF Gaming X570-PRO Wi-Fi AM4 ATX Motherboard is compatible with Windows 10 64-bit operating systems.
AMD X570
ASUS TUF GAMING X570-PRO Motherboard motherboard uses the AMD X570 chipset and AM4 socket, making it compatible with 2nd and 3rd Gen Ryzen processors, and 1st, 2nd, and 3rd Gen Ryzen processors with Radeon Graphics.
Dr. MOS
The TUF Gaming X570-Pro Wi-Fi motherboard’s CPU VRM utilizes 12+2 Dr. MOS power stages that combine high-side and low-side MOSFETs and drivers into one package, delivering the facility and efficiency that AMD’s latest processors demand.
6-Layer PCB Design
ASUS TUF GAMING X570-PRO Motherboard Multiple PCB layers shift heat far away from critical components, providing more headroom to push your CPUs beyond stock speeds.
ProCool Sockets
Enhanced EATX 4- and 8-pin sockets are designed to be more durable, preventing hotspots and connector failures. ASUS TUF GAMING X570-PRO Motherboard Furthermore, ProCool sockets are built to tight specifications to make sure to flush contact with the PSU power lines.
Built TUF
ASUS TUF GAMING X570-PRO Motherboard Built Military-grade TUF chokes deliver steady power to the CPU, helping to enhance system stability, while TUF capacitors deliver +20% temperature tolerance and a couple of .5 times longer lifespan.
Digi+ VRM
The Digi+ voltage-regulator module, or VRM, ensures smooth and clean power delivery to the CPU in the least times.
VRM Heatsink
The ASUS TUF GAMING X570-PRO Motherboard high-mass heatsink provides ample surface space that covers the VRM and chokes areas.
Stack Cool 3+
ASUS TUF GAMING X570-PRO Motherboard Drawing heat far away from critical components, 2oz-copper layers ensure modules remain at their optimal operating temperatures, while also providing more headroom to push CPUs beyond stock speeds.
Dual PCIe Slots
ASUS TUF GAMING X570-PRO Motherboard Dual PCIe 4.0 M.2 slots support up to type 22110 drives and supply NVMe SSD RAID support for a performance boost. Create a RAID configuration with up to 2 PCIe 4.0 storage devices for fast data-transfer speeds.
