Specification
Basic Information | ||
Supported CPU | AMD AM4 Socket for 3rd/ 2nd/ 1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/Athlon with Radeon Vega Graphics/7th Generation A-series/Athlon X4 Processors | |
Chipset | AMD A320 | |
BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control | |
Form Factor | mATX Form Factor 8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm ) |
|
Expansion Slots | ||
PCI | 3rd/2nd/1st Gen AMD Ryzen Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /7th Generation A-series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (max at x4 mode) AMD A320 chipset 2 x PCIe 2.0 x1 |
|
M.2 Socket | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
|
Memory | ||
Type | Dual Channel Memory Architecture | |
Slots | 2 | |
Supported Memory | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz ECC and non-ECC, Un-buffered Memory AMD 7th Generation A-Series/Athlon X4 Processors DDR4 2400/2133 MHz Non-ECC, Un-buffered Memory |
|
Maximum Memory | 64GB for 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors 32GB for AMD 7th Generation A-Series/Athlon X4 Processors |
|
Graphics | ||
Graphics | Integrated Graphics in the 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics /Athlon with Radeon Vega Graphics /7th Generation A-Series APU Multi-VGA output support : HDMI/DVI-D/RGB ports – Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz – Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz – Supports RGB with max. resolution 1920 x 1200 @ 60 Hz |
|
Max Shared Memory | 2048 MB | |
Connector & Ports | ||
HDMI | 1 x HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz | |
USB (s) | 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors : 4 x USB 3.1 Gen 1 port(s) (4 at back panel, blue) AMD A320 chipset : 2 x USB 3.1 Gen 1 port(s) (2 at mid-board) ASMedia USB 3.2 Gen 2 controller : 1 x USB 3.1 Gen 2 port(s) (1 at back panel, teal blue, Type-A) AMD A320 chipset : 4 x USB 2.0 port(s) (4 at mid-board) |
|
LAN Port (s) | Realtek RTL8111H, 1 x Gigabit LAN Controller(s) | |
Supported Storage | AMD A320 chipset : 4 x SATA 6Gb/s port(s), gray, Support Raid 0, 1, 10 3rd/2nd/1st Gen AMD Ryzen/ 2nd and 1st Gen AMD Ryzen with Radeon™ Vega Graphics : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) AMD Athlon with Radeon Vega Graphics/ 7th Generation A-Series/ Athlon X4 Processors : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) |
|
Audio | Realtek ALC887 8-Channel High Definition Audio CODEC | |
Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) 1 x COM port(s) connector(s) 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) (1 x 4 -pin) 1 x Chassis Fan connector(s) (1 x 4 -pin) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 4-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x Speaker connector |
|
DVI-D (s) | 1x DVI-D with max. resolution 1920 x 1200 @ 60 Hz | |
Warranty Information | ||
Manufacturing Warranty | 03 years | |
Others | ||
Special Features | ASUS 5X Protection III : – ASUS SafeSlot Core: Fortified PCIe Slot prevents damage – ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! – ASUS Overvoltage Protection: World-class circuit-protecting power design – ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! – ASUS DIGI+ VRM: 6 Phase digital power design ASUS Exclusive Features : – AI Suite 3 – Ai Charger ASUS Quiet Thermal Solution : – Stylish Fanless Design Heat-sink solution – ASUS Fan Xpert ASUS EZ DIY : – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode – Multi-language BIOS ASUS Q-Design : – ASUS Q-Slot – ASUS Q-DIMM |
Description

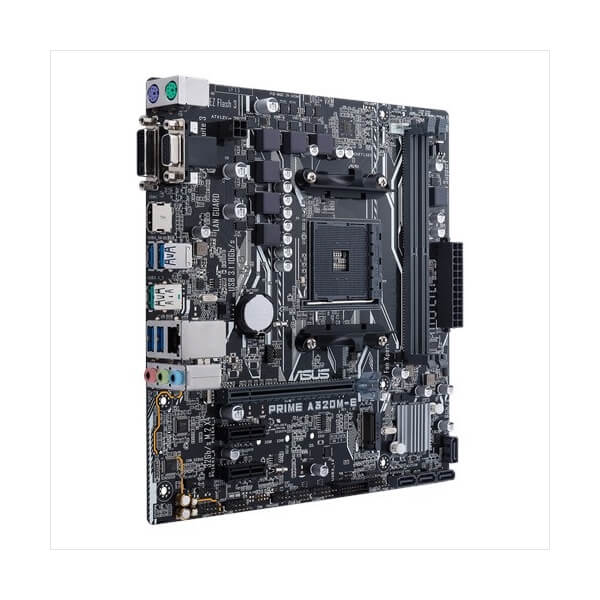

Asus Prime A320M-E AMD AM4 uATX Motherboard
ASUS Prime is the next evolution of the ASUS motherboard, born of a pedigree that stretches back to 1989. Our team of world-class engineers is passionate about empowering everyone to enjoy the benefits of customization and tuning, and the driving force behind the development of Prime is to make advanced enthusiast controls easily accessible — maximizing performance, stability, and compatibility for the very best DIY PC experiences. Simply stated: it’s time for Prime. ASUS is the world’s foremost motherboard manufacturer, renowned for our unique Design Thinking approach. Our exhaustive testing exceeds industry standards, supported by high-quality components for exceptional real-world protection. Our motherboards are proven to be compatible with more than 1,000 components and devices, and each new model undergoes a minimum of 8,000 hours of strict validation. ASUS gives you the peace of mind of knowing that your motherboard is fit for all environments and applications. By choosing ASUS, you also gain the freedom to select outstanding component options, for trouble-free DIY experiences. PRIME A320 series motherboards are engineered with industry-leading 5X Protection III, employing the finest components, excellent circuit design, and exacting standards to guarantee the quality and long-term durability of your motherboard. That means exceptional protection and stability for your build — thanks to decades of engineering experience from the world’s leading motherboard brand. SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that’s anchored to the motherboard by a special hook, Safe slot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots. ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors to ensure a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. ASUS ESD Guards prevent damage from electrostatic discharge, up to +/- 10kV for air discharge and +/- 6kV for contact discharge, arranged in an active-protective-circuit design that prolongs the life of components. Having the freedom to pick and choose the parts that go into your machine is at the heart of PC DIY. Our extensive certification program focuses on providing the very best compatibility with the widest range of components and devices, giving you the freedom to build and upgrade without frustration. Compatible today and compatible far into the future – that’s the ASUS way. Exclusive Fan Xpert ensures every fan achieves the best balance of cooling performance and low noise – and with Prime A320 series boards and their hardware-level 4-pin/3-pin PWM/DC mode for case fans, a simple BIOS adjustment lets you run your case fan in PWM/DC. Fan Xpert even includes Auto-Tuning mode to scan and detect all fan characteristics for single-click customization!
What is the price of Asus Prime A320M-E Motherboard in Bangladesh?
The latest price of Asus Prime A320M-E Motherboard in Bangladesh is 5,900৳. You can buy the Asus Prime A320M-E Motherboard at best price from our website or visit our showrooms.
