SPECIFICATION
MOTHERBOARD | |
Supported CPU | AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors |
Chipset | AMD B550 |
Memory | 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory AMD Ryzen 5000 series processors: Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules 3rd Gen AMD Ryzen Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen with Radeon Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Graphics | Integrated into the New Generation AMD Ryzen with Radeon Graphics processors: HDMI port, supporting a maximum resolution of 4096×2160 60 Hz Support for HDMI 2.1 version, HDCP 2.3, and HDR. DisplayPort, supporting a maximum resolution of 5120×2880 60 Hz Support for DisplayPort 1.4 version, HDCP 2.3, and HDR. |
Slots | 4 x DDR4 memory slots |
Supported Storage | M.2 connector (M2A_CPU), integrated with the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated into the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors, integrated into the Chipset: Support for RAID 0, RAID 1, and RAID 10 |
LAN | Realtek GbE LAN chip (1000 Mbit/100 Mbit) |
Audio | Realtek ALC1200 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out |
USB Port | CPU: 4 x USB 3.2 Gen 1 ports on the back panel Chipset: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+1 USB 2.0 Hub: 4 x USB 2.0/1.1 ports on the back panel |
Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x serial port header 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 1 x Thunderbolt header |

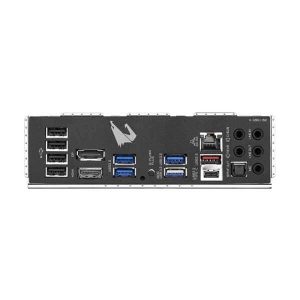

External I/O Ports | 4 x USB 2.0/1.1 ports DisplayPort HDMI port USB 3.2 Gen 1 ports USB 3.2 Gen 2 Type-A port (red) USB Type-C port, with USB 3.2 Gen 2 support Q-Flash Plus button RJ-45 port optical S/PDIF Out connector audio jacks |
DIMENSIONS | 24.4cm x 24.4cm |
Form Factor | Micro ATX Form |
BIOS | 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
HDMI | HDMI port, supporting a maximum resolution of 4096×2160 |
Others | Support for APP Center EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install |
Warranty | 03 years |
DESCRIPTION

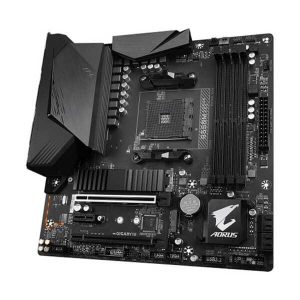

Gigabyte Aorus B550M Pro Motherboard
With an advanced thermal design with a fins-array heatsink and a direct touch Heatpipe, the Gigabyte B550M AORUS PRO AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has four memory slots, supporting up to 128GB of dual-channel RAM, which can run at up to 4733 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.
PCIe 4.0 Bandwidth
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
Dual NVMe PCIe 4.0/3.0 M.2 Connectors
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors support RAID 0/1/10 modes.
Realtek LAN
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure the highest network priority.
Smart Fan 5
Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid cooling friendly.
RGB Fusion 2.0
RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support. What is the Gigabyte Aorus B550M Pro
