|Supported CPU||Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket – Digi Power design – 13 Power Phase design – Supports Intel® Turbo Boost Max Technology 3.0 – Supports ASRock Hyper BCLK Engine III|
|Chipset||– Intel X299|
|Memory||Quad Channel DDR4 Memory Technology – 8 x DDR4 DIMM Slots – Supports DDR4 4400+(OC)* / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports non-ECC RDIMM (Registered DIMM)** – Max. the capacity of system memory: 256GB*** – Supports Intel® Extreme Memory Profile (XMP) 2.0 – 15μ Gold Contact in DIMM Slots|
|Slots||4 x PCI Express 3.0 x16 Slots – 1 x PCI Express 2.0 x1 Slot – Supports AMD Quad CrossFireX™, 3-Way CrossFireX™ and CrossFireX – Supports NVIDIA® Quad SLI™, 3-Way SLI™ and SLI – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O) – 15μ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)|
|Supported Storage||– 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 15 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug* – 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) – 2 x Ultra M.2 Sockets (M2_1 and M2_3), support M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)|
|LAN||– Gigabit LAN 10/100/1000 Mb/s – 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Dual LAN with Teaming* – Supports Energy Efficient Ethernet 802.3az – Supports PXE|
|Audio||7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) – Premium Blu-ray Audio support – Supports Surge Protection – Supports Purity Sound™ 4 – Nichicon Fine Gold Series Audio Caps – 120dB SNR DAC with Differential Amplifier – TI® NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets) – Pure Power-In – Direct Drive Technology – PCB Isolate Shielding – Impedance Sensing on Rear Out port – Individual PCB Layers for R/L Audio Channel – Gold Audio Jacks – 15μ Gold Audio Connector – Supports DTS Connect|
|Internal I/O Ports||1 x Virtual RAID On CPU Header – 1 x TPM Header – 1 x Power LED and Speaker Header – 2 x RGB LED Headers* – 1 x CPU Fan Connector (4-pin)** – 1 x CPU Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** – 2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x Chassis Optional/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** – 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) – 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) – 1 x Front Panel Audio Connector (15μ Gold Audio Connector) – 1 x Thunderbolt™ AIC Connector (5-pin) – 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) – 2 x USB 3.1 Gen1 Headers (Support 4 USB 3.1 Gen1 ports) (ASMedia ASM1074 Hub) (Supports ESD Protection) – 1 x Dr. Debug with LED|
|External I/O Ports||2 x Antenna Ports – 1 x PS/2 Mouse/Keyboard Port – 1 x Optical SPDIF Out Port – 2 x USB 2.0 Ports (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection) – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (ASMedia ASM3142) (Supports ESD Protection)* – 4 x USB 3.1 Gen1 Ports (Supports ESD Protection) – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED) – 1 x BIOS Flashback Switch – 1 x Clear CMOS Switch – HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)|
|WiFi||– Intel® 802.11ac WiFi Module (Free Bundle) – Supports IEEE 802.11a/b/g/n/ac – Supports Dual-Band (2.4/5 GHz) – Supports high-speed wireless connections up to 433Mbps – Supports Bluetooth 4.2 / 3.0 + High-speed class II|
|Form Factor||ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm – 8 Layer PCB – 2oz Copper PCB|
|BIOS||– 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS) – Supports Secure Backup UEFI Technology – ACPI 6.1 Compliant wake up events – SMBIOS 3.0 Support – CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCST, VCCSA, VCCSFR, VCCPLL, CLK VDD Voltage Multi-adjustment|
|Others||ASRock USB 3.1 Gen2 – ASRock USB 3.1 Gen2 Type-A Port (10 Gb/s) – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s) ASRock Super Alloy – XXL Aluminum Alloy Heatsink – Premium 65A Power Choke – Dr. MOS – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors) – I/O Armor – Matte Black PCB – High Density Glass Fabric PCB ASRock 802.11ac WiFi ASRock Steel Slots ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Ultra USB Power ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop|
|Warranty||03 years Warranty|

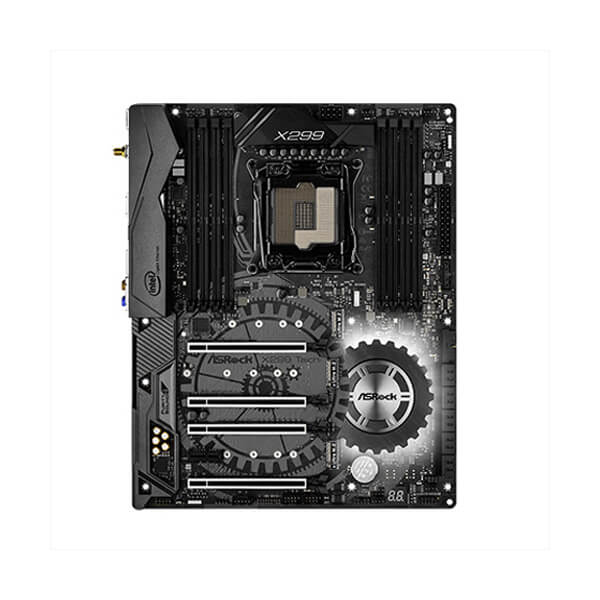

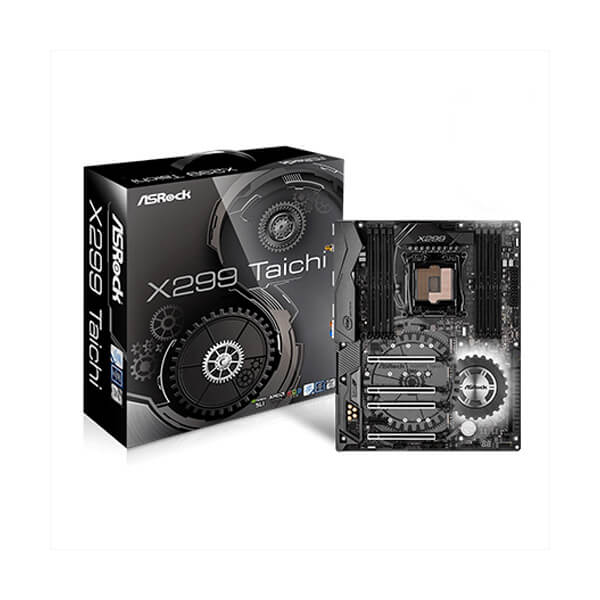

ASRock X299 Taichi WiFi Motherboard in Bangladesh
Dual-Band 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That’s why this ASRock X299 Taichi Motherboard comes with an 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth v4.2.
Triple Ultra M.2
ASRock X299 Taichi Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
13 Power Phase Design
ASRock X299 Taichi Designed with a 13 Power Phase Design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with rock bottom temperature for advanced gamers also.
Dr. MOS’s design features the newest SPS (Smart Power Stage) technology. It’s optimized for monitoring the current and temperature of every phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
8 Layer PCB (4 x 2oz Copper) & DDR4 4400+(OC)
The 8 Layer PCB comes with 4 sets of two-ounce copper inner layers, providing stable signal traces and power shapes and delivering lower temperature and better energy efficiency for overclocking! Thus,ASRock X299 Taichi Intel ATX WiFi Motherboard’s ready to support the newest DDR4 memory modules with the most extreme memory performance!
Dual Intel LAN
ASRock X299 Taichi Intel ATX WiFi Motherboard Users are ready to connect two LAN cables to the present motherboard’s rear I/O. Dual LAN with Teaming function enabled on this motherboard allows two single connections to act together single connection for twice the transmission bandwidth, making data transmission simpler.
Dual USB 3.1 Gen2 (Type-A + Type-C)
The ASRock X299 Taichi Intel ATX WiFi Motherboard newer and more power-efficient ASM3142 USB 3.1 Gen2 controller not only delivers up to 10 Gbps data transfer rates but also supports “Multiple Ins” architecture, it’s ready to maintain fast and stable speed while transferring data from two USB storage devices at an equivalent time without bogging down by their speed difference.
ASRock X299 Taichi WiFi Motherboard Build your own colorful lighting system! RGB LED and header allows users to attach LED strip and make their unique PC style easily. The ASRock RGB LED utility is often downloaded directly or from an all-in-one utility ASRock Live Update & APP Shop!
PCI-E STEEL SLOT
The ASRock X299 Taichi WiFi Motherboard advanced PCI-E Steel Slot full of solid cover that prevents any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed within the PCI-E slot safely.
XXL Aluminum Alloy Heatsink
ASRock X299 Taichi WiFi Motherboard Extra-large aluminum alloy heat sinks that effectively deduct heat from the MOSFET and chipset in order that your whole system may perform more stable.
Premium 65A Power Choke
ASRock X299 Taichi WiFi Motherboard Compared to traditional chokes, ASRock’s premium 65A power chokes effectively make the saturation current up to 3 times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS’s design features the newest SPS (Smart Power Stage) technology. ASRock X299 Taichi WiFi Motherboard’s optimized for monitoring the current and temperature of every phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of a minimum of 12,000 hours. ASRock X299 Taichi WiFi Motherboard Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that provide 20% longer lifespans and supply more stability and reliability.
A new designed protective covering for all of the crucial parts near the ASRock X299 Taichi WiFi Motherboard’s rear I/O, in order that they will not easily be damaged by electricity.
Hyper BCLK Engine III
An additional external base clock generator that supports PCIe frequency overclocking. ASRock X299 Taichi WiFi Motherboard provides a wider range of frequencies and more precise clock waveforms, allowing any user to urge most from their CPU investment with precise, stable overclocking.
ASRock X299 Taichi WiFi Motherboard Virtual RAID On CPU (VROC) is that the latest technology that permits you to create a separate RAID array with M.2 NVME cards, using PCIe Lanes coming from the CPU. With VROC, users can set up RAID 0 to hurry up the system with ease, not only that, an optional Upgrade Module is additionally available to open up more RAID options like 1, 5, and 10.
